Broaching Machine: A Complete Guide

A broaching machine is a specialized tool used in the manufacturing industry to perform the broaching process, a machining operation that removes material with a toothed tool called a broach. This machine is essential for producing complex shapes with precision, especially in mass production settings. In this article, we’ll explore the types, working principles, applications, advantages, and limitations of the broaching machine.

---

What is a Broaching Machine?

A broaching machine is a metal cutting tool that pushes or pulls a broach—a multi-tooth cutting tool—across a workpiece surface to remove material. It is used to shape internal and external profiles such as splines, keyways, holes, and flat surfaces. Broaching offers high precision and is ideal for high-volume, repetitive tasks.

---

How a Broaching Machine Works

The operation of a broaching machine is based on linear motion. It uses a broach with increasing tooth height along its length. As the tool moves over the workpiece, each successive tooth removes a small amount of material. The cumulative effect is a precise and clean cut, even on tough materials.

The process typically involves the following steps:

1. Setup – The workpiece is clamped in position.


2. Cutting – The broach is either pulled or pushed through the material.


3. Finishing – The final teeth of the broach provide the finished surface.


4. Tool Return – After cutting, the broach returns to its starting position.



---

Types of Broaching Machines

There are several types of broaching machines, categorized by how they operate:

1. Horizontal Broaching Machine

• In this type, the broach moves in a horizontal direction.


• Commonly used for surface and keyway broaching.


• Requires more floor space but provides good support for long broaches.

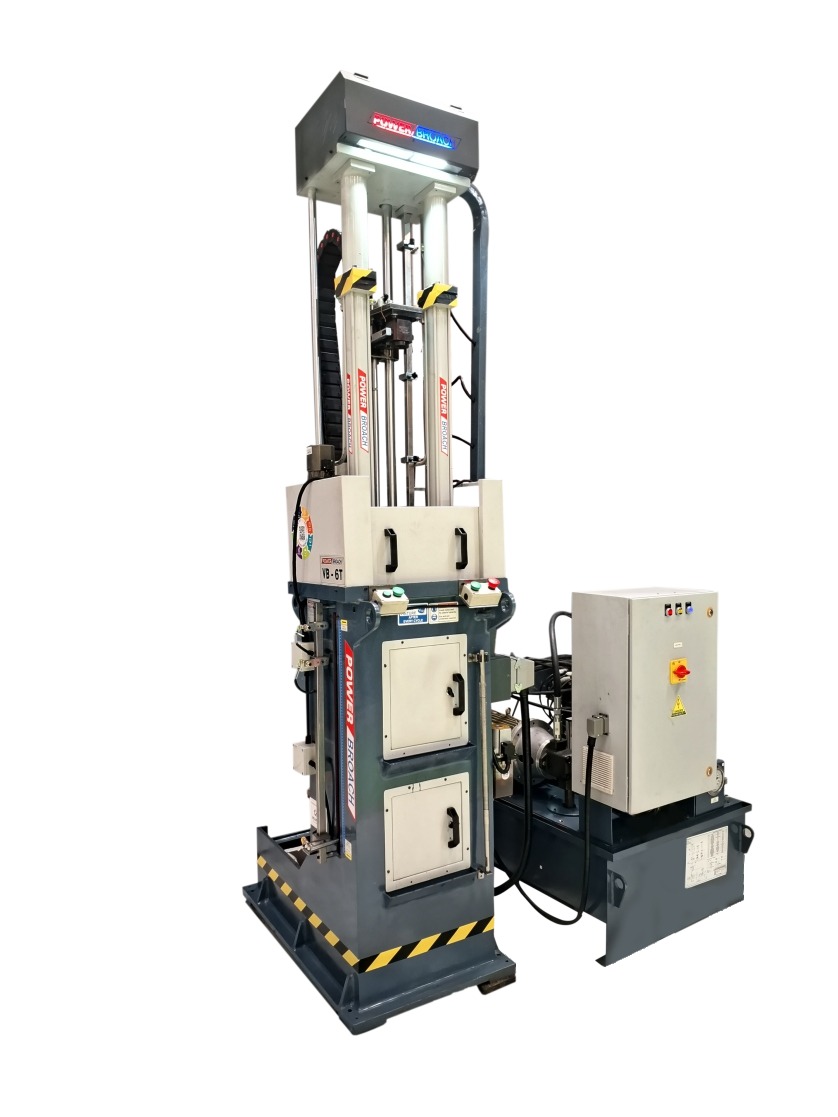

2. Vertical Broaching Machine

• Operates with a vertical movement of the broach.


• Ideal for internal broaching like hole or spline shaping.


• Occupies less space and allows for easy gravity-assisted chip removal.



3. Pull-Type Broaching Machine

• The broach is pulled through the workpiece.


• Suitable for internal broaching, offering more control and stability.



4. Push-Type Broaching Machine

• The broach is pushed through the material.


• Often used for shorter workpieces and external broaching operations.



5. Continuous Broaching Machine

• Designed for high-speed, automated production lines.


• Workpieces are continuously fed while broaching occurs.


• Used in automotive and heavy manufacturing sectors.



---

Components of a Broaching Machine

A broaching machine consists of several critical parts:

• Base/Bed: Provides stability and support for the entire system.


• Broach Tool: The actual cutting tool with teeth arranged in a linear fashion.


• Worktable: Holds and secures the workpiece during broaching.


• Drive Mechanism: Powers the movement of the broach, typically hydraulic or mechanical.


• Fixture/Clamping Unit: Ensures the workpiece stays in place during cutting.



---

Applications of Broaching Machines

Broaching machines are versatile and used in a wide range of industries:

• Automotive Industry: For shaping gears, steering components, and splined shafts.


• Aerospace: To machine turbine discs and engine components.


• Manufacturing: Ideal for producing custom-shaped holes and slots in bulk.


• Defense Industry: Used for precision components in firearms and machinery.



Common parts produced by broaching machines include:

• Keyways


• Internal gears


• Splines


• Round, square, and hexagonal holes


• Turbine blades



---

Advantages of Using a Broaching Machine

The broaching machine offers numerous benefits that make it a popular choice in modern machining processes:

• High Accuracy: Produces consistent and precise dimensions.


• Surface Finish: Delivers smooth and fine surface finishes.


• Productivity: Excellent for mass production due to its speed and repeatability.


• Versatility: Capable of producing a wide variety of shapes and profiles.


• Reduced Skill Requirement: Easy to operate with less need for highly skilled labor.



---

Limitations of Broaching Machines

Despite its advantages, a broaching machine does come with certain limitations:

• High Initial Cost: The equipment and broaches are expensive.


• Limited Flexibility: Not ideal for short-run or custom jobs due to the cost of broach design.


• Tool Wear: Broach tools wear out over time and can be costly to replace.


• Size Limitations: Large or awkwardly shaped workpieces may not be suitable for broaching.



---

Maintenance and Safety Considerations

Proper maintenance of a broaching machine is crucial for its performance and longevity. Key maintenance practices include:

• Regular Lubrication: To reduce friction and wear on moving parts.


• Inspection of Broach Teeth: Worn or damaged teeth should be replaced promptly.


• Coolant Management: Ensures thermal stability and chip removal.


• Alignment Checks: Misalignment can affect precision and damage tools.



Safety precautions should also be taken to prevent workplace accidents:

• Use proper clamping to secure the workpiece.


• Wear protective gear like gloves and goggles.


• Do not exceed machine capacity or tool speed.



---

Broaching Machine vs Other Machining Tools

Here’s a comparison of broaching machines with other common machining tools:

Feature	Broaching Machine	Milling Machine	Drilling Machine
Material Removal	With toothed broach	With rotating cutter	With rotating drill bit
Precision	Very high	Moderate to high	Moderate
Speed	Very fast	Slower	Fast
Cost per Unit	Low (in bulk)	Moderate	Low
Flexibility	Low	High	Moderate

---

Innovations in Broaching Technology

Modern broaching machines are incorporating automation, CNC control, and advanced tool materials to enhance productivity and durability. CNC broaching machines now offer better control, programmable paths, and automated workpiece loading, making them highly efficient for large-scale manufacturing.

Some advancements include:

• Servo Drive Mechanisms for precise movement.


• Coolant Recovery Systems to improve sustainability.


• Smart Diagnostics for predictive maintenance.



---

Conclusion

The broaching machine plays a crucial role in the manufacturing sector, especially where high precision and repeatability are required. From shaping intricate internal geometries to producing finely finished surfaces, it proves to be an efficient and reliable solution for high-volume production. Though the initial cost is high, the long-term benefits in productivity and accuracy often justify the investment.

Manufacturers looking for efficient internal or external machining should strongly consider integrating a broaching machine into their production line. With continued advancements in automation and tool design, the future of broaching technology promises even more innovation and performance.
